BMW M54B22, M54B25 and M54B30 - DISA Valve Cover Cap
This DISA valve cover cap is designed to remove the DISA system from the intake manifold on BMW M54 engines, replacing OEM 11617502269.
Description
This cap serves as a direct delete plug for the original DISA valve on BMW M54B22, M54B25, and M54B30 engines. Removing the factory valve eliminates potential vacuum leaks and mechanical failures associated with the original flap mechanism. The unit replaces components cross-referenced to OEM 11617502269, 0928400416, 11617544806, and 11617544805.
The design includes an integrated dummy connector that secures the factory electrical cable, preventing it from hanging freely inside the engine bay after the valve is removed. The cap is tested to withstand over 1.5 bar of positive pressure and uses a Viton O-ring to ensure a proper seal.
Common Symptoms of Failure
- Vacuum leaks at the intake manifold.
- Unstable engine idle and stalling.
- Rattling noise from the intake manifold.
- Loss of low-end torque due to a broken factory DISA flap.
Features
- Direct DISA delete plug for OEM 11617502269, 0928400416, 11617544806, and 11617544805.
- Includes a dummy connector for factory cable retention.
- Tested to withstand over 1.5 bar of positive pressure.
- Sealed with a high-temperature, oil-resistant Viton O-ring.
- Manufactured from ABS and PA6-CF (carbon fiber reinforced polyamide).
- Heat resistant up to 180 degrees Celsius.
Benefits
- Eliminates vacuum leaks caused by original DISA valve failure.
- Prevents catastrophic engine damage from broken DISA flap ingestion.
- Simplifies the M54 intake system for more stable engine operation.
- Secures the factory electrical harness safely out of the way.
Compatibility
- BMW E46
- BMW E39
- BMW E60 / E61
- BMW X3 E83
- BMW Z3
- Please verify your OEM part number before purchasing.
Compatible Engines
- BMW M54B22
- BMW M54B25
- BMW M54B30
Installation

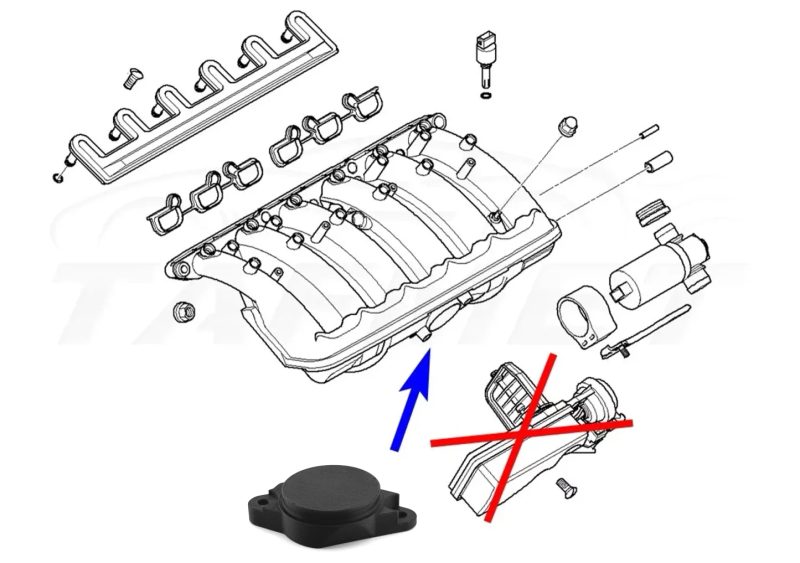

Installation requires removing the original DISA valve from the intake manifold and inserting the delete cap. The cap installs without modifications and uses the included Viton O-ring for sealing. Plug the factory electrical harness into the integrated dummy connector to secure the wiring.
OEM Cross-Reference
- 11617502269
- 0928400416
- 11617544806
- 11617544805
Specifications
- OEM Number(s): 11617502269, 0928400416, 11617544806, 11617544805
- Material: ABS and PA6-CF (carbon fiber reinforced polyamide)
- Color: Black
- Condition: New
Specifications
- Brand
- bmw
- Material
- ABS
- Weight
- 50 g
- Condition
- new
- Origin
- BG
- Warranty
- 24 months
Frequently asked questions
This DISA Valve Cover Cap is designed for BMW models equipped with M54B22, M54B25, and M54B30 engines. Specifically, it is compatible with the E39, E46, E60, E61, E83, and Z3 series. Please verify your engine type and model year to ensure proper fitment for your vehicle before purchase.
